AC DC Hipot
The AC DC Hipot is very suitable for testing of electrical strength of different insulating materials, Transformers, HV Insulators, High voltage cable, High Voltage capacitor, electrical items like motors, switch gears etc. Being a top AC DC Hipot suppliers in India, it’s our responsibility to manufacture the products with Quality. Our product SBE - AC DC Hipot is equipped with the High Accuracy Digital Display for right voltage measurement and all kinds of protections like a short circuit, HRC fuse, Relay protection, and indicators that show that the machine is overpowered.
Download Catalogue
View More
PRODUCT GALLERY

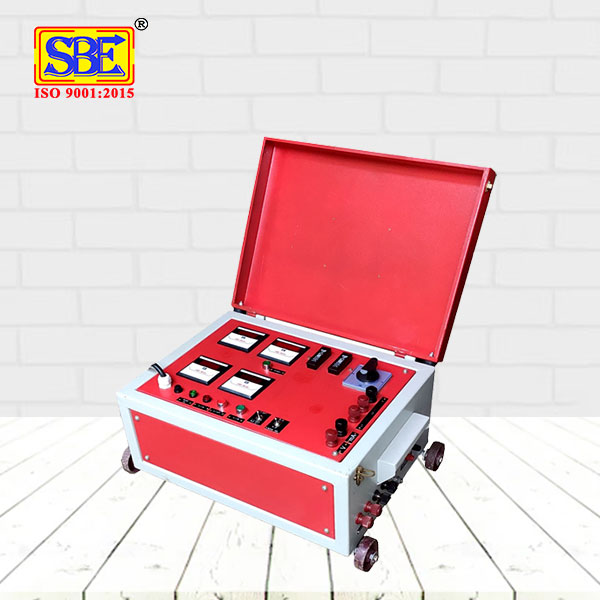

High-End Control Panel Box

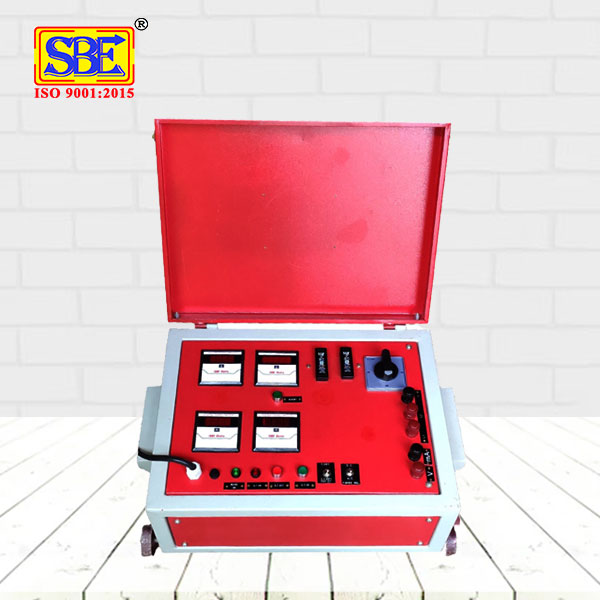

The AC DC Hipot test device is equipped with a lot of stuff in its control panel. You can find out the lamps, switches, push-button, fuses, meters, etc that are fitted on this machine to ensure that you have control over what’s going on during and after the voltage injection phase. The product of ac dc hipot manufacturers in India will work great for the people who want to make or repair transformers, generators, cables, motors, pumps, laboratory equipment, insulating items, and more. Try this device that comes with a load of accessories to support your work.
| MODEL | SBE – ACDCHV 30 | SBE – ACDCHV 40 | SBE – ACDCHV 50 | SBE – ACDCHV 60 | SBE – ACDCHV 70 | SBE – ACDCHV 75 |
| OUTPUT VOLTAGE | 30 KV | 40 KV | 50 KV | 60 KV | 70 KV | 75 KV |
| TRIPPING CURRENT FOR AC | 50 mA, 100 mA, 200 mA, 300 mA, 400 mA, 500 mA, 1000 mA, 2000 mA, 3000 mA, | |||||
| TRIPPING CURRENT FOR DC | 10 mA, 20 mA, 30 mA, 40 mA, 50mA,100mA | |||||
| VOLTAGE ACCURACY | ± 2 % OF READING | |||||
| VOLTAGE REGULATION | 1 KV | |||||
| CURRENT ACCURACY | ± 2 % OF READING | |||||
| CURRENT RESOLUTION | 1 mA | |||||
| MAINS SUPPLY | 230 V, SINGLE PHASE / 400 V, TWO PHASE,50 Hz, AC | |||||
| DUTY | INTERMITTENT ( 5 MINUTES ON, 10 MINUTES OFF) | |||||
| TIMER | 0 – 999 SEC | |||||
| TIMER ACCURACY | ± 0.05 % | |||||
| OPERATION | MANUAL / MOTORIZED | |||||
| COOLING | AIR NATURAL COOLED | |||||
| INDICATION | INDICATION FOR MAINS ON & HT ON | |||||
| PROTECTION | ZERO START INTERLOCK, EARTH INTERLOCK, M.C.B PROTECTION, HRC FUSE PROTECTION, RELAY PROTECTION, OVERLOAD TRIPPING ARZANGEMENT, | |||||
| Units | 3 UNITS (CONTROL UNIT, HV TRANSFORMER, RECTIFIER UNIT) | |||||
| OPERATING TEMP. | 0 ° C TO 55°C | |||||
| HUMIDITY | 5 – 90 % | |||||
- Relay Protection
- Easy to Operate
- HRC Fuse Protection
- Short Circuit Protection
- Over Current Protection
- Capable to test up-to 50 KV
- High Voltage ‘ON’ Indication
- Zero Start Interlock Facility
- Variable Test Voltage Setting Knob
- Available in Manual / Motorized Mode
- KV Meter for High Voltage Measurement
- mA Meter for leakage current measurement
- Timer for testing Time Setting(Optional)
- Selector switch for leakage current Setting
- Electrical Testing Laboratories
- Insulating Items Manufacturing Industries
- Pump Manufacturing and Repair Industries
- Cable Manufacturing and Repair Industries
- Motor Manufacturing and Repair Industries
- Engineering, Polytechnic and other Institutes
- Generator Manufacturing and Repair Industries
- Transformer Manufacturing and Repair Industries
- Meters, Switches, Indicating Lamps, Push Button, Fuses etc. are fitted on the TOP of Control Panel Box.
- One Single Phase Copper double wound H.V Step up Graded Insulation is mounted in the Second unit.
- HV DIODE, HV CAPACITOR, HV MEASURING RESISTANCE CHAIN IS PROVIDED FOR DC HV SECTION AS SEPARATE UNIT.
- Contactor, Protection CT , wiring, One continuously variable Auto Transformer to vary the output voltage of suitable capacity are
mounted inside the control box.
- Discharge Rod.
- Operating Manual.
- Works Test Report. .
- Warranty Certificate.
- 5 Meters Input Mains Power Cord.
- 5 Meter Interconnecting Cable for Testing Panel and DC Rectifier Unit.
- 5 Meter Interconnecting Cable for Testing Panel and High Voltage Transformer.
- Spare : 2 Nos. Fuses, 2 Nos. Push Button, 2 Nos. Indication Lamps, 1 No. Micro Switch, 2 Nos. Battery Terminals.
