Test Precise Voltage Of A Device
Direct Current Voltage Testing Made Simple
The high voltage tester DC will test the amount of insulation happening inside a transformer. The direct current tester will work efficiently for the works like substation material testing, panel testing, cable testing, and insulating material testing that are not popular but used in the products. Safety of the device is mandatory, and that’s why the apparatus lets you test up to a DC of 180kv in the manual and motorised mode. The specific voltage testing will help you make the transformers, generator, cables, engineering material, laboratory equipment, motor equipment, and more. Test your equipment with DC High Voltage Tester suppliers in India to measure the voltage of your device and create a sturdy device!
Download Catalogue
Timer for a Precise Testing
The product of DC high voltage tester manufacturers in India is designed in such a way that it will do proper testing of your product once the timing is measured. Just set the timer on the apparatus and it will record the time when the voltage is involved and the time the voltage applies to its fullest.
It will also tell you the total time spent on the voltage application so you can understand how quickly the device reacts to the applied voltage. Try this DC high voltage tester for your transformer, generator, cable, and other manufacturing or repairing activities.
| MODEL | SBE – DCHV 30 | SBE – DCHV 40 | SBE – DCHV 50 | SBE – DCHV 60 | SBE – DCHV 70 | SBE – DCHV 80 |
| OUTPUT VOLTAGE | 30 KV | 40 KV | 50 KV | 60 KV | 70 KV | 80 KV |
| TRIPPING CURRENT FOR DC | 10 mA, 20 mA, 30 mA, 40 mA, 50 mA, 100 mA, | |||||
| VOLTAGE ACCURACY | ± 2 % OF READING | |||||
| VOLTAGE REGULATION | 1 KV | |||||
| CURRENT ACCURACY | ± 2 % OF READING | |||||
| CURRENT RESOLUTION | 1 mA | |||||
| MAINS SUPPLY | 230 V, SINGLE PHASE / 400 V, TWO PHASE, 50 Hz, AC | |||||
| DUTY | INTERMITTENT ( 5 MINUTES ON, 10 MINUTES OFF) | |||||
| TIMER | 0 – 999 SEC | |||||
| TIMER ACCURACY | ± 0.05 | |||||
| OPERATION | MANUAL / MOTORIZED | |||||
| COOLING | AIR NATURAL COOLED | |||||
| INDICATION | INDICATION FOR MAINS ON & HT ON | |||||
| PROTECTION | ZERO START INTERLOCK EARTH INTERLOCK M.C.B PROTECTION HRC FUSE PROTECTION RELAY PROTECTION OVERLOAD TRIPPING ARZANGEMENT | |||||
| Units | 3 UNITS (CONTROL UNIT, HV TRANSFORMER, RECTIFIER UNIT) | |||||
| OPERATING TEMP. | 0 ° C TO 55 ° C | |||||
| HUMIDITY | 5 – 90 % | |||||
- Electrical Testing Laboratories
- Insulating Items Manufacturing Industries
- Cable Manufacturing and Repair Industries
- Motor Manufacturing and Repair Industries
- Pump Manufacturing and Repair Industries
- Engineering, Polytechnic and other Institutes
- Generator Manufacturing and Repair Industries
- Transformer Manufacturing and Repair Industries

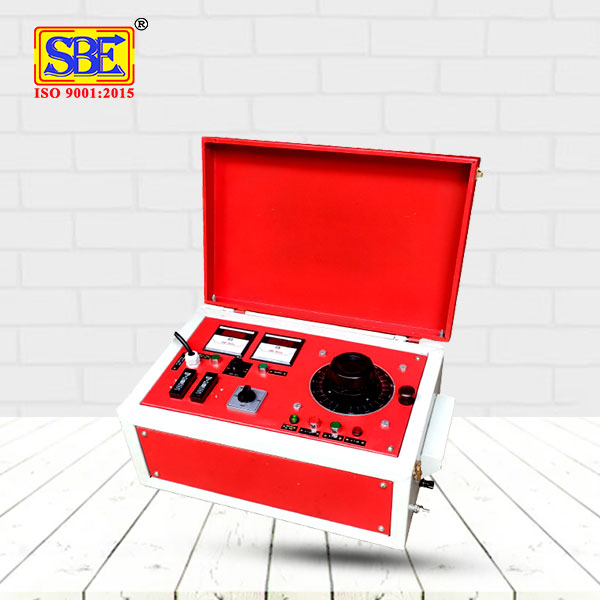

- Meters, Switches, Indicating Lamps, Push Button, Fuses etc. are fitted on the TOP of Control Panel Box.
- One Single Phase Copper double wound H.V Step up Graded Insulation is mounted in the Second unit
- HV DIODE, HV CAPACITOR, HV MEASURING RESISTANCE CHAIN IS PROVIDED AS SEPARATE UNIT.
- Contactor, Protection CT , wiring, One continuously variable Auto Transformer to vary the output voltage of suitable capacity are mounted inside the control box.
- Discharge Rod.
- Operating Manual.
- Works Test Report.
- Warranty Certificate.
- 5 Meters Input Mains Power Cord.
- 5 Meter Interconnecting Cable for Testing Panel and DC Rectifier Unit.
- 5 Meter Interconnecting Cable for Testing Panel and High Voltage Transformer.
- Spare : 2 Nos. Fuses, 2 Nos. Push Button, 2 Nos. Indication Lamps, 1 No. Micro Switch, 2 Nos. Battery Terminals.
