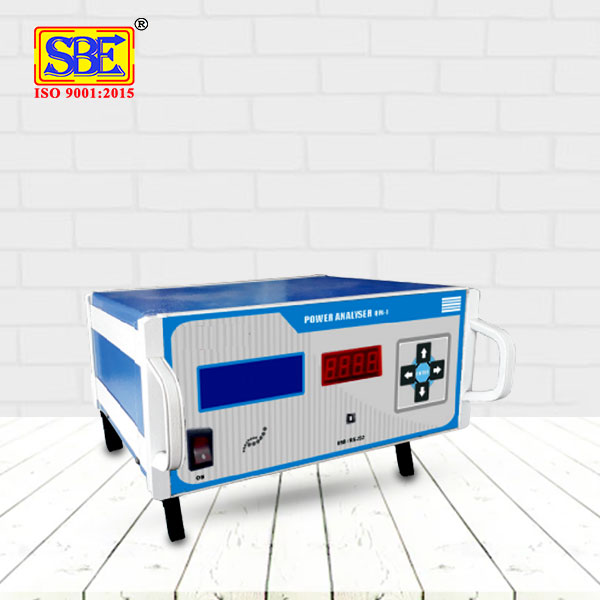

Digital Power Analyzer for True RMS Current Measurement
One Device Three Works
The Digital Power Analyzer can work surprisingly well for the measurement of the current, power, and voltage into the three-phase system. The device is equipped with transducers that make it easy to measure the current and voltage. The digital power quality analyzer will stimulate you to know the losses issues of domestic appliances. The high-speed measurements can be done on this machine where you can easily rectify the data on the Seven Segment Display LCD Display to understand every mathematical calculation. Manufacturing of the transformers, home gadgets, calibration laboratories equipment, induction motors, and Submersible Pumps Is easy when you have the product of digital power analyzer manufacturers in India.
Download Catalogue
View More
PRODUCT GALLERY
Measuring Current up to 80A & Voltage Upto 600V
The digital power analyser will measure the current of up to 80A in a device that is with you concerning the repairing or manufacturing work. You will also be able to measure its voltage, which can go up to a range of 600V. There are many electronic equipment that require high voltage and current like power transformers, switches, control, relay panels, earthing equipment, battery set, instrument transformer, reactive power and more.
We as leading digital power analyzer suppliers in India know that you have to meet a lot of challenges in your business to fulfil clients’ demands and thus create the products that meets your expectations.
- Portable Size
- Accuracy : 0.2 Class
- Inbuilt Surge Protection
- Harmonics (Individual and Total)
- 5 Keys for User friendly operation
- 80 A True RMS Current Measurement
- High Speed and accurate measurements
- Rack mountable as well as Table Top model. (2 in 1)
- Multiple Displays ( LCD Display, Seven Segment Display)
- 600 V (Ph- N), 1000 V (Ph- Ph) True RMS Volt measurement
- Temper Proof calibration with long interval stability in measurement
- Submersible Pumps
- Transformer Industries
- Calibration Laboratories
- AC Induction Motors Industries
- Home Appliances Manufacturers
- Harmonics Volts and Current up to 31st
- Range of Current : 80 mA to 80 A without use of external CT
- Range of Voltage : 10 V to 600 V Phase to Neutral. (Phase to Phase 1000 V)
- It can measure True RMS, Mean , Rectified and Peak value of Voltage and Current
- It can also measure Active Power (P), Apparent Power (S), and Reactive Power (Q) accurately
- It is Micro controller based Instrument so, performs calculation of V, I, P, PF, with any load and signals of frequency from 45 Hz to 65 Hz
- System Frequency : Hz
- Apparent Power (VA) – Total
- Voltage (V) – V1, V2, V3 and Average Voltage
- Current (A) – I1, I2, I2 and Average Current
- Power Factor (Cos ϕ) – PF1 , PF2, PF3 & System
- Active Power (W) – W1, W2, W3 AND Average Power
- Liquid Crystal Display of 20 X 4 line
- 5 Keys are provided to perform easy operation
- Seven Segment OLED Display for long distance view
- SBE- TPPA 80 is designed for user-friendly operation with features like two displays
SBE – TPPA 80 is enhanced by USB / RS-232 serial interface to communicate with computer. Download Software is provided for that .The software is capable to collect mostly all basic parameters from instrument for both on line testing and capable to generate test report. User can record testing data in real time also.
