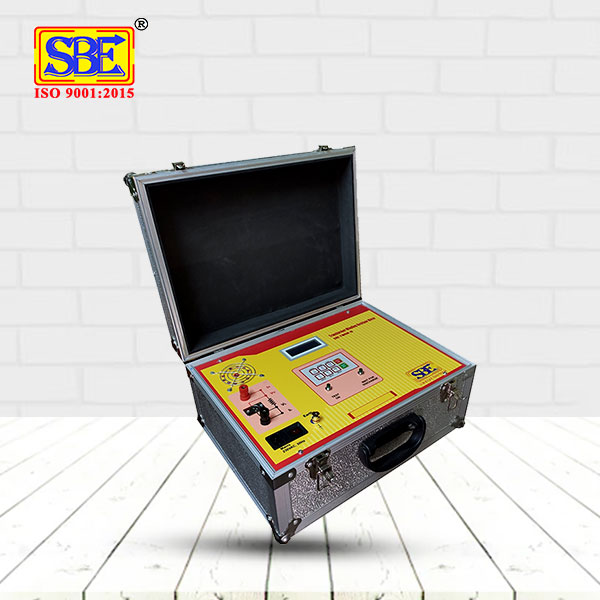

Highly Stable 10 Amp Current Source Winding Resistance Meter
The transfer winding resistance meter will serve you to identify the winding resistance of the generators, transformers, inductors, motors, power cables, and more. The testing value of resistance will push you to create the extraordinary products that are mentioned above. You will not only raise your business by identifying the failure of the device but also will test it using the meter. When customers are going to use your laboratory machines, coils, transformers, etc., they are continuing to pay for the quality product that you have created for them and the business will rise.
Download Catalogue
View More
PRODUCT GALLERY
Download Data with Ease
Whatever you are determining on the transformer winding resistance meter handed over by the top winding resistance meter suppliers in India can be got on paper through the printer. You can attach the machine to the PC or laptop and download the data in digital format too. This will back you develop the research work for the motors, coils, transformer, cables, electronic segments, and more. Try using the winding resistance meter manufacturers in India product today to grow your trade with its four-terminal measurements, Protection against Back E.M.F for high Inductive Loads, 4½ Digit LED / LCD Display, and more.
- 4½ Digit LED / LCD Display.
- Stable & Fast Measurement.
- 0.1 µΩ Resolution on 2 MΩ range.
- True Four Terminal Measurement.
- Regulated and Highly Stable 10 Amp Current Source.
- Protection against Back E.M.F for high Inductive Loads.
- Test Laboratories.
- College Laboratories.
- Communication Cable.
- Instrumentation Cable.
- Component Manufacturing.
- Transmission and Distribution.
- Current Transformer Manufacturing.
- Transformer, Motors, Coil Manufacturing.
- User Manual.

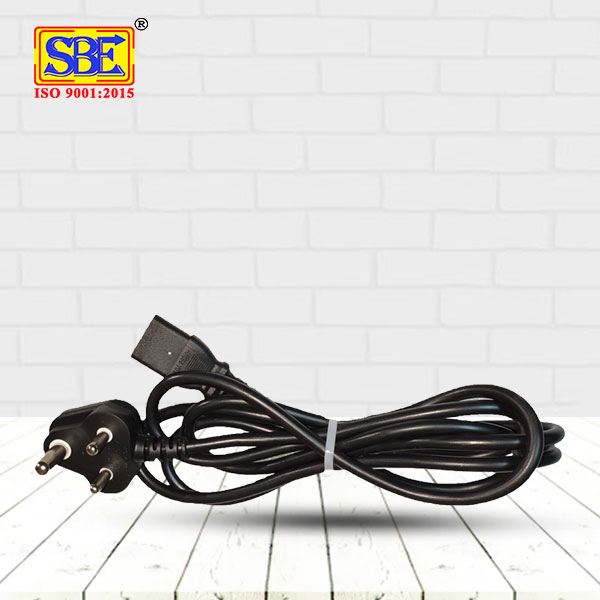

- Mains Power Cord.

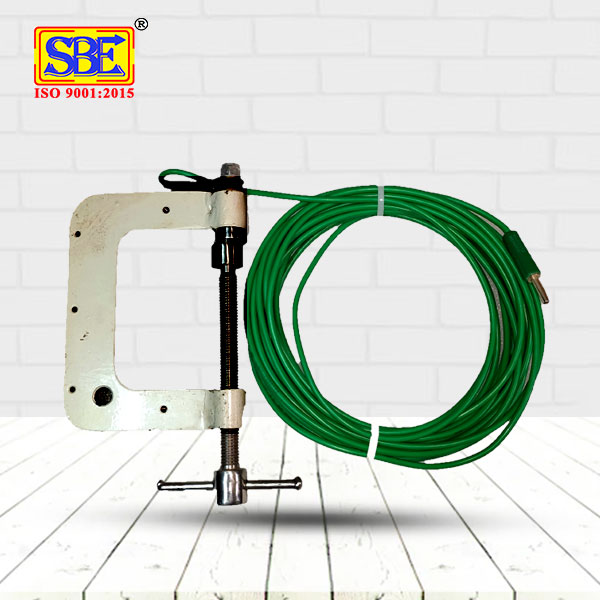

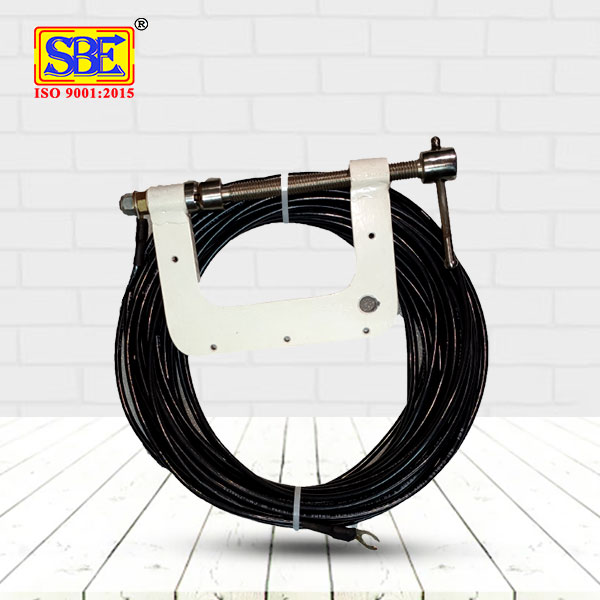

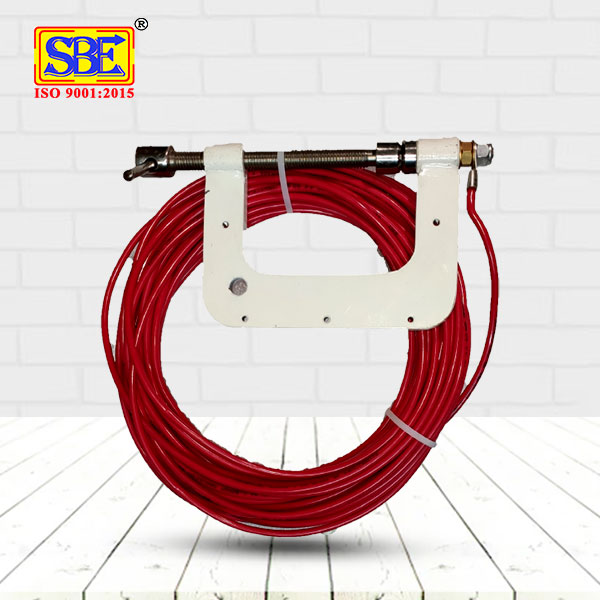

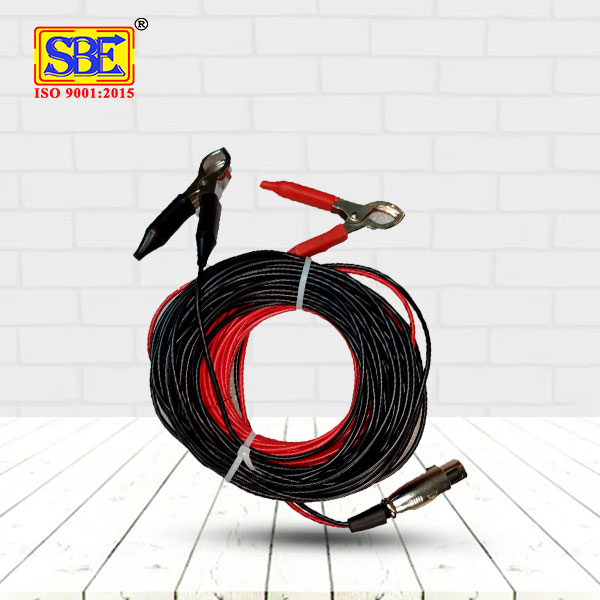

- One Set of Test Leads( 5 Meters) with Crocodile Clip (Optional: C – CLAMP)
- Printer.
- Data Save and Download.
| RANGE | MAX. RADING | CURRENT | RESOLUTION | ACCURACY |
| 2 mΩ | 1.9999 mΩ | 10 A | 0.1 Ω | ± 0.5% of rdg ±5 Digit |
| 20 mΩ | 19.999 mΩ | 1A | 1Ω | ± 0.5% of rdg ±5 Digit |
| 200 mΩ | 199.99 mΩ | 1A | 10 Ω | ± 0.5% of rdg ±5 Digit |
| 2000 mΩ | 1.9999 Ω | 100 mA | 100 Ω | ± 0.5% of rdg ±5 Digit |
| 20 Ω | 19.999 Ω | 10 mA | 1 mΩ | ± 0.5% of rdg ±5 Digit |
| 200 Ω | 199.99 Ω | 1 mA | 10 mΩ | ± 0.5% of rdg ±5 Digit |
| 2000 Ω | 1999.9 Ω | 1 mA | 0.1 mΩ | ± 0.5% of rdg ±5 Digit |
| POWER SUPPLY | 230 V AC, 50 Hz, Single Phase. | |||
